DM542 DM556 Replaces M556 2 Phase Low-noise DSP Digital Stepper Motor Driver For Nema17 Nema23 42 57 Stepper Motor Controller

Name: DM542 DM556 Replaces M556 2 Phase Lownoise DSP Digital Stepper Motor Driver For Nema17 Nema23 42 57 Stepper Motor Controller
Brand: Zero One
Price: 9 USD

Wholesale DM542 DM556 Replaces M556 2 Phase Low-noise DSP Digital Stepper Motor Driver For Nema17 Nema23 42 57 Stepper Motor Controller from china suppliers

Brand Name : Zero One

Model Number : DM556

Certification : CE;RHOS;ISO

Place of Origin : Shenzhen,China

MOQ : 10pcs

Price : $9-10/unit

Payment Terms : L/C;D/A;D/P;T/T;Western Union; MoneyGram; Paypal

Supply Ability : 1000pcs/day

Delivery Time : 2-15 days

Packaging Details : 1pcs in a box; 50pcs in a carton

Color : Black

Model : 57 motor controller

Contact Now

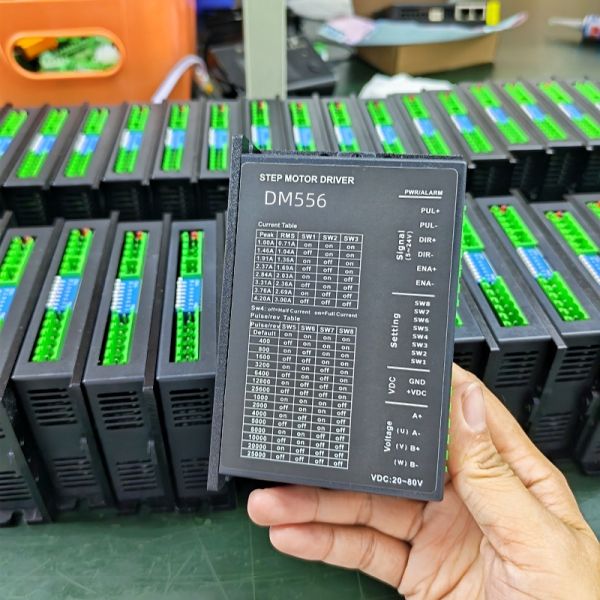

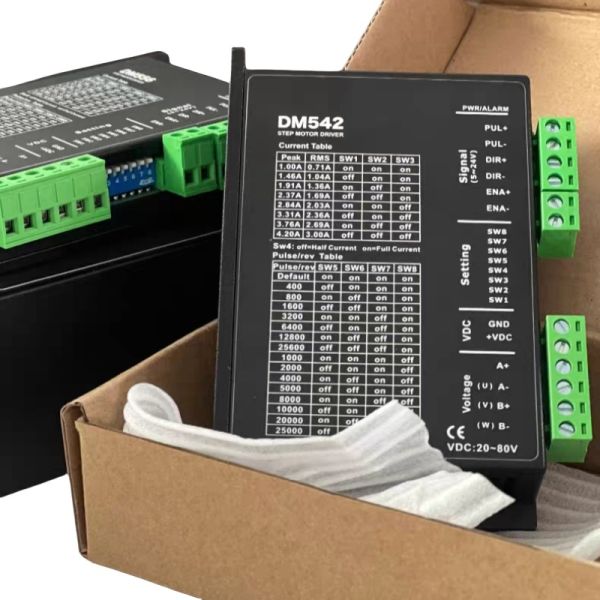

This is the DM556 and DM542 motor controller produced by our factory. The voltage output is 20V-80V, the maximum current is 5.6A and 4.2A, and it is a 2-phase open-loop pulse motor driver. It is commonly used for Nema17 and Nema23 motors.

DM542 DM556 Replaces M556 2 Phase Low-noise DSP Digital Stepper Motor Driver For Nema17 Nema23 42 57 Stepper Motor Controller

Encoder interface
EZ-	1	The negative terminal of the differential input interface for the encoder Z signal (open-loop stepping is not connected).
EZ+	2	The positive end of the differential input interface for the encoder Z signal (open-loop stepping is not connected).
EB-	3	The negative terminal of the differential input interface for the encoder B signal (open-loop stepping is not connected).
EB+	4	The positive end of the differential input interface for the encoder B signal (open-loop stepping is not connected).
EA-	5	The negative terminal of the differential input interface of the encoder A signal (open-loop stepping is not connected).
EA+	6	The positive end of the differential input interface of the encoder A signal (open-loop stepping is not connected).
GND	7	Provide the negative terminal of the DC film reference for the encoder of the motor.
5V	8	Provide a DC voltage of 5V and a current of 100mA to the encoder of the motor.

Items	Pins	Function
VDC	1	Positive pole of DC power supply, power supply voltage range: DC 24~80Vdc, recommended to operate at 24Vdc or 36Vdc.
GND	2	Dc power supply ground
A+	3	The A+ phase winding interface of the stepper motor
A-/U	4	The A- phase winding interface of A stepping motor (or the U of a three-phase motor)
B+/V	5	The B+ phase winding interface of a stepper motor (or the V of a three-phase motor)
B+/W	6	The B- phase winding interface of a stepping motor (or the W of a three-phase motor)

DM542 DM556 Replaces M556 2 Phase Low-noise DSP Digital Stepper Motor Driver For Nema17 Nema23 42 57 Stepper Motor Controller Images
