2P2260 HB2260 2-phase 3XP2260 HB3722 3-phase Pulse High Voltage 110V-240V Stepper Driver For 86 110 130 Nema42 Motor CNC Machine

Brand Name : ZEROONR-Control

Model Number : P2260

Certification : CE,ROHS

Place of Origin : Shenzhen, China

MOQ : 1pcs

Price : US$47/pcs

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 100 pcs/day

Delivery Time : 3-7 days

Packaging Details : 1pcs/box, 30 boxes/carton

Motor type : Stepper Motor,DC Motor,Hybrid

Weight : 1.55kg

Name : DM3722 stepper motor driver,7.2A, 86 110 130 Digital Stepping Motor Driver, High Voltage Stepper motor dirver

Application : stepper motor,57,contor board,Nema23/24/34/42 two phase stepper motors,all kinds of CNC machine

Color : white

Control mode : Pulse + direction,modbus remote,manual input,DIR/Pulse + CW/CCW

Voltage range : DC110V-240V

Current range : 2.4-7.2A (9A max)

Matched motor : 86mm 110mm 130mm flange Nema34,nema42 motor

Advantage : Speed stability and Control convenient,no need computer or pulse generator to drive stepper motor

Currenting setting : 16 channel

Upmost microstep : 60000ppr

Contact Now

2P2260/HB2722 2-Phase & 3XP2260/HB3722 3-Phase High Voltage Stepper Drivers
High-performance pulse stepper drivers designed for 110V-240V operation, compatible with NEMA 34, 42, and 52 motors for CNC machinery and industrial automation applications.
2P2260/HB2722 2-Phase High-Voltage Stepper Driver
Engineered for driving 2-phase hybrid stepper motors (4-lead or 8-lead configuration).
  • Input Voltage: AC 110V - 220V (Direct AC input, 220V ±10%)
  • Output Current: 1.2A - 7.0A (Peak), adjustable via 16-level DIP switches
  • Compatible Motors: NEMA 34, 42, 52 (86, 110, 130 series) 2-phase motors
  • Microstep Resolution: Up to 40,000 steps/revolution with 16 levels of constant torque microstepping
  • Signal Interface: Compatible with 5V - 24V logic signals (no external resistor required)
  • Key Feature: Utilizes AC servo control principles for exceptionally smooth low-speed operation with minimal vibration
3XP2260/HB3722 3-Phase High-Voltage Stepper Driver
Designed for driving 3-phase hybrid stepper motors (3-lead configuration), offering superior high-speed performance with reduced torque loss and fewer resonance points compared to 2-phase systems.
  • Input Voltage: AC 110V - 220V (Direct AC input, 220V ±10%)
  • Output Current: 1.2A - 7.0A (Heavy-duty versions available up to 9A-10A)
  • Compatible Motors: NEMA 34, 42, 52 (86, 110, 130 series) 3-phase motors
  • Microstep Resolution: Up to 60,000 steps/revolution
  • Pulse Frequency: Maximum response frequency of 200kHz - 500kHz
  • Key Feature: Superior high-speed performance, lower torque ripple, and quieter operation
Technical Parameter Comparison
Parameter 2P2260/HB2722 (2-Phase) 3XP2260/HB3722 (3-Phase)
Motor Phase 2-Phase 3-Phase
Power Input AC 110-220V (Direct AC input, 220V ±10%) AC 110-220V (Direct AC input, 220V ±10%)
Peak Current 1.2A - 7.0A 1.2A - 7.0A
Microstep Range 400 - 40,000 steps/rev 400 - 60,000 steps/rev
Signal Voltage 5V - 24V Adaptive 5V - 24V Adaptive
Protection Overvoltage, Overcurrent, Phase Error Overvoltage, Overcurrent, Phase Error
Typical Applications CNC routers, Milling machines Packaging machinery, Heavy automation
Critical Selection Guidelines
  1. Motor Compatibility: This is the most critical factor. For motors with 3 wires, you must select the HB3722. For motors with 4 or 8 wires, choose the HB2722.
  2. Safety Precautions: Both drivers connect directly to AC 220V high voltage. Always disconnect power before wiring and ensure proper chassis grounding.
  3. Current Configuration: Set the peak current at approximately 1.1-1.2 times the motor's rated current (RMS) to ensure optimal torque performance without motor overheating.

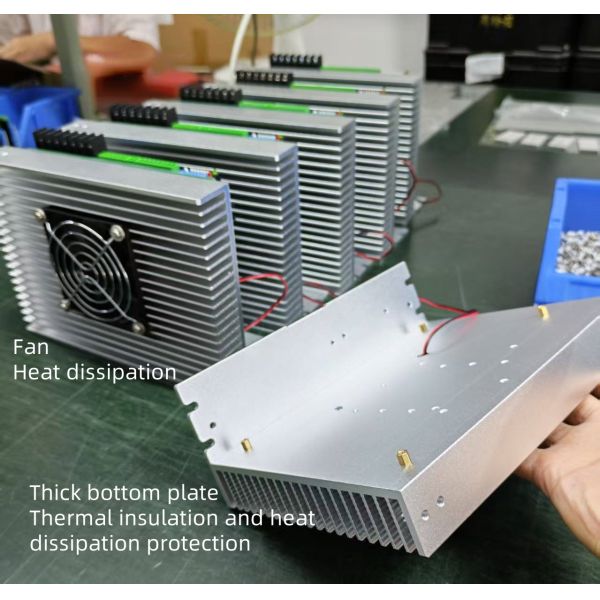

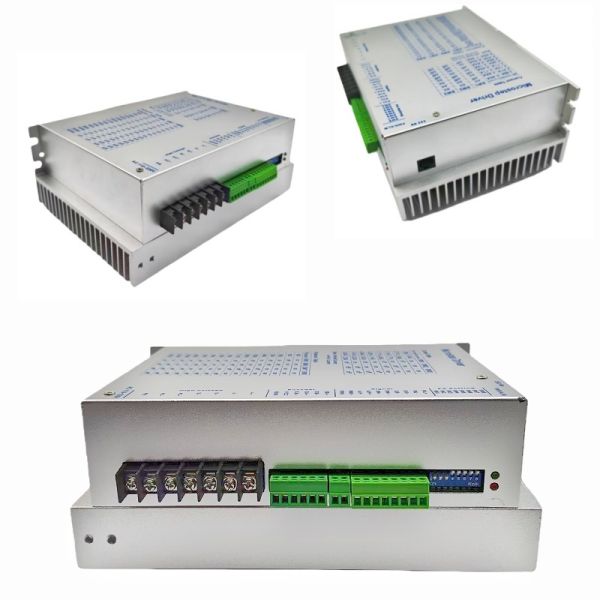

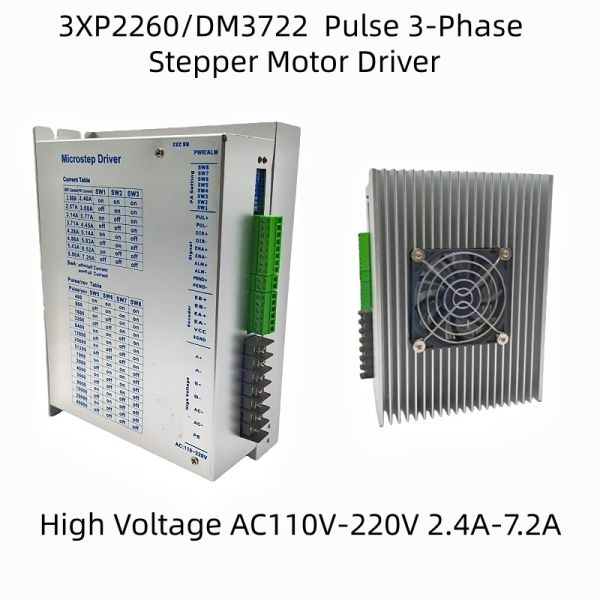

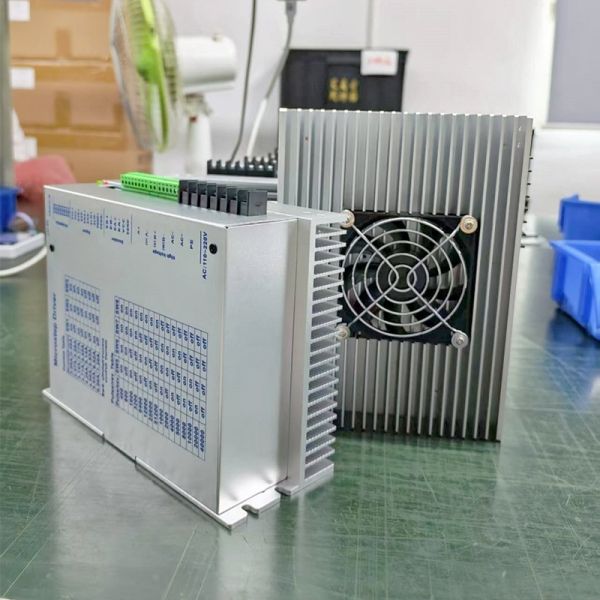

Mechanical Dimensions and Product Images
2P2260 HB2260 2-phase 3XP2260 HB3722 3-phase Pulse High Voltage 110V-240V Stepper Driver For 86 110 130 Nema42 Motor CNC Machine 2P2260 HB2260 2-phase 3XP2260 HB3722 3-phase Pulse High Voltage 110V-240V Stepper Driver For 86 110 130 Nema42 Motor CNC Machine 2P2260 HB2260 2-phase 3XP2260 HB3722 3-phase Pulse High Voltage 110V-240V Stepper Driver For 86 110 130 Nema42 Motor CNC Machine 2P2260 HB2260 2-phase 3XP2260 HB3722 3-phase Pulse High Voltage 110V-240V Stepper Driver For 86 110 130 Nema42 Motor CNC Machine 2P2260 HB2260 2-phase 3XP2260 HB3722 3-phase Pulse High Voltage 110V-240V Stepper Driver For 86 110 130 Nema42 Motor CNC Machine 2P2260 HB2260 2-phase 3XP2260 HB3722 3-phase Pulse High Voltage 110V-240V Stepper Driver For 86 110 130 Nema42 Motor CNC Machine 2P2260 HB2260 2-phase 3XP2260 HB3722 3-phase Pulse High Voltage 110V-240V Stepper Driver For 86 110 130 Nema42 Motor CNC Machine 2P2260 HB2260 2-phase 3XP2260 HB3722 3-phase Pulse High Voltage 110V-240V Stepper Driver For 86 110 130 Nema42 Motor CNC Machine
